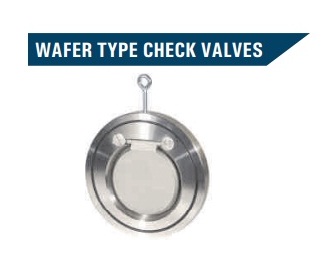

WAFER TYPE CHECK VALVES

Wafer type check valves are a type of check valve designed to fit between two flanges. They provide a simple and effective solution for preventing reverse flow in pipelines. Unlike other types of check valves, wafer check valves do not require a separate set of flanges for installation, making them a cost-effective solution for many applications.

PURPOSE

The purpose of a wafer type check valve is to prevent backflow in a pipeline. They are typically used in applications where a compact and lightweight valve is needed to fit between flanges, such as in HVAC, irrigation, and water treatment systems. Wafer check valves are known for their reliable performance, low maintenance, and ease of installation.

BENEFITS

The main benefits of wafer type check valves include their compact size, lightweight design, and cost-effectiveness. They also require less space and weight than other types of check valves, making them ideal for use in applications where space is limited. Wafer check valves also provide high flow rates with minimal pressure drop, making them an energy-efficient solution.

APPLICATIONS

Wafer type check valves are commonly used in a variety of industries, including HVAC, water treatment, chemical processing, and oil and gas. They are ideal for use in applications where space is limited, and cost-effectiveness is a top priority. Some of the most common applications of wafer check valves include preventing backflow in pumps, pipelines, and water treatment systems.

CONTACT GUSTO’S EXPERTS TODAY TO HELP YOU CHOOSE THE RIGHT VALVE !

TECHNICAL DATA

Design & Mfg Std : API6D
Insp & Test Std : EN12266-1/API598
Range : 50mm To 300mm
Pressure Rating : 150#, PN10, PN16
End Connection : Wafer To Suit
Moc : C.I/WCB/CF8/CF8M
Trims : S.S.410/S.S.304/S.S.316
Seat : Nitrile, EPDM, Teflon
